GMB-486SG: 80486 VESA Green Mainboard
This page gives scans of the page 1 to 29 of User's Guide
of the GMB-486SG VESA Green Mainboard. The remaining pages of
the book deal with the Award BIOS setup. Information about
this can also be found elsewhere (I guess).

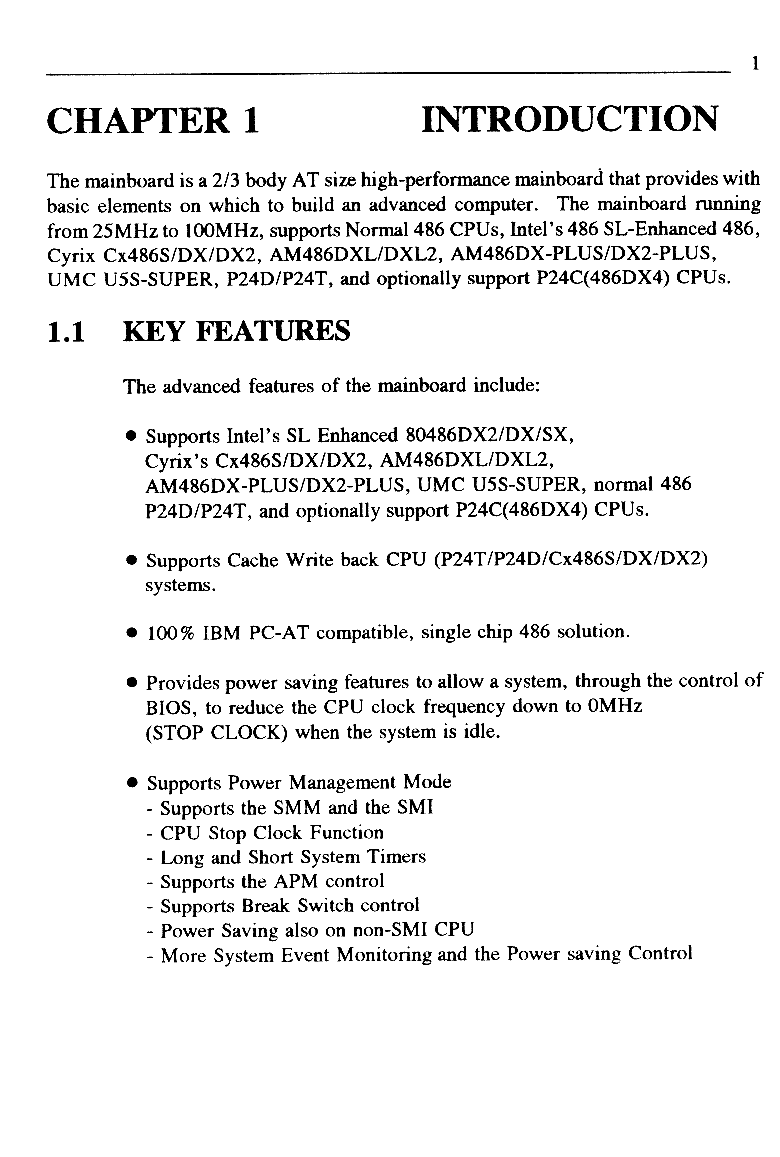

- page 1

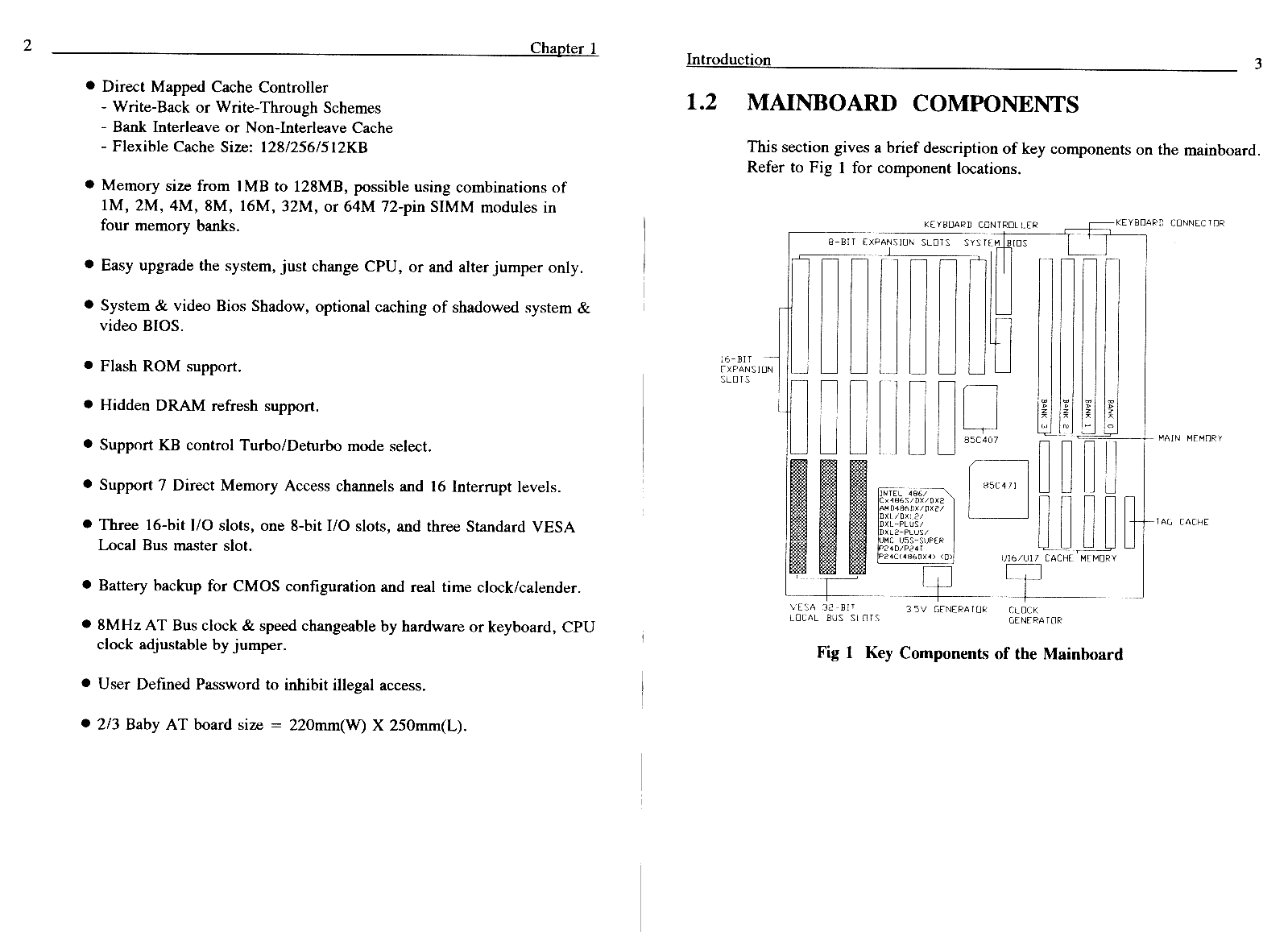

- pages 2 and 3
- pages 4 and 5
- pages 6 and 7

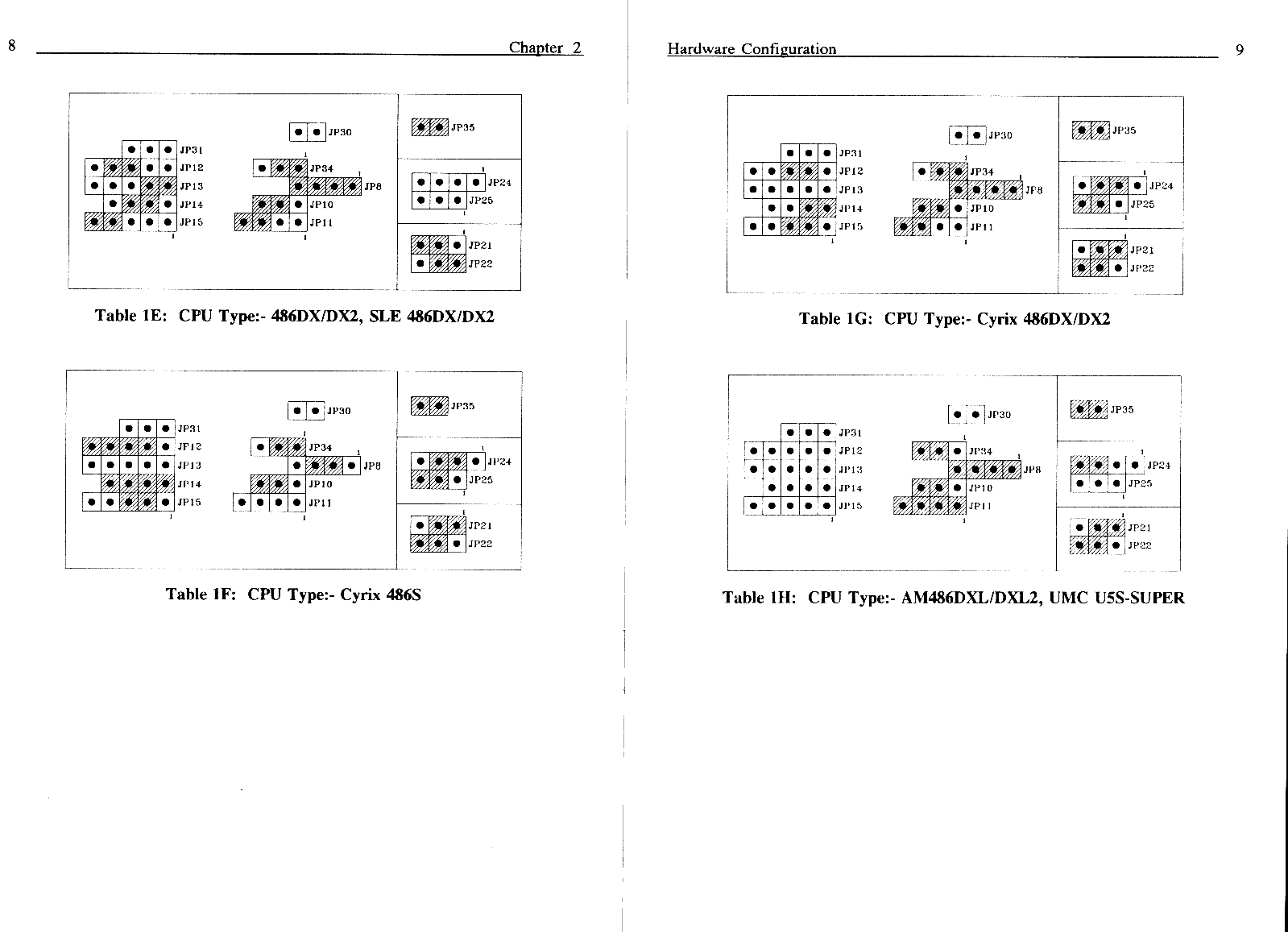

- pages 8 and 9

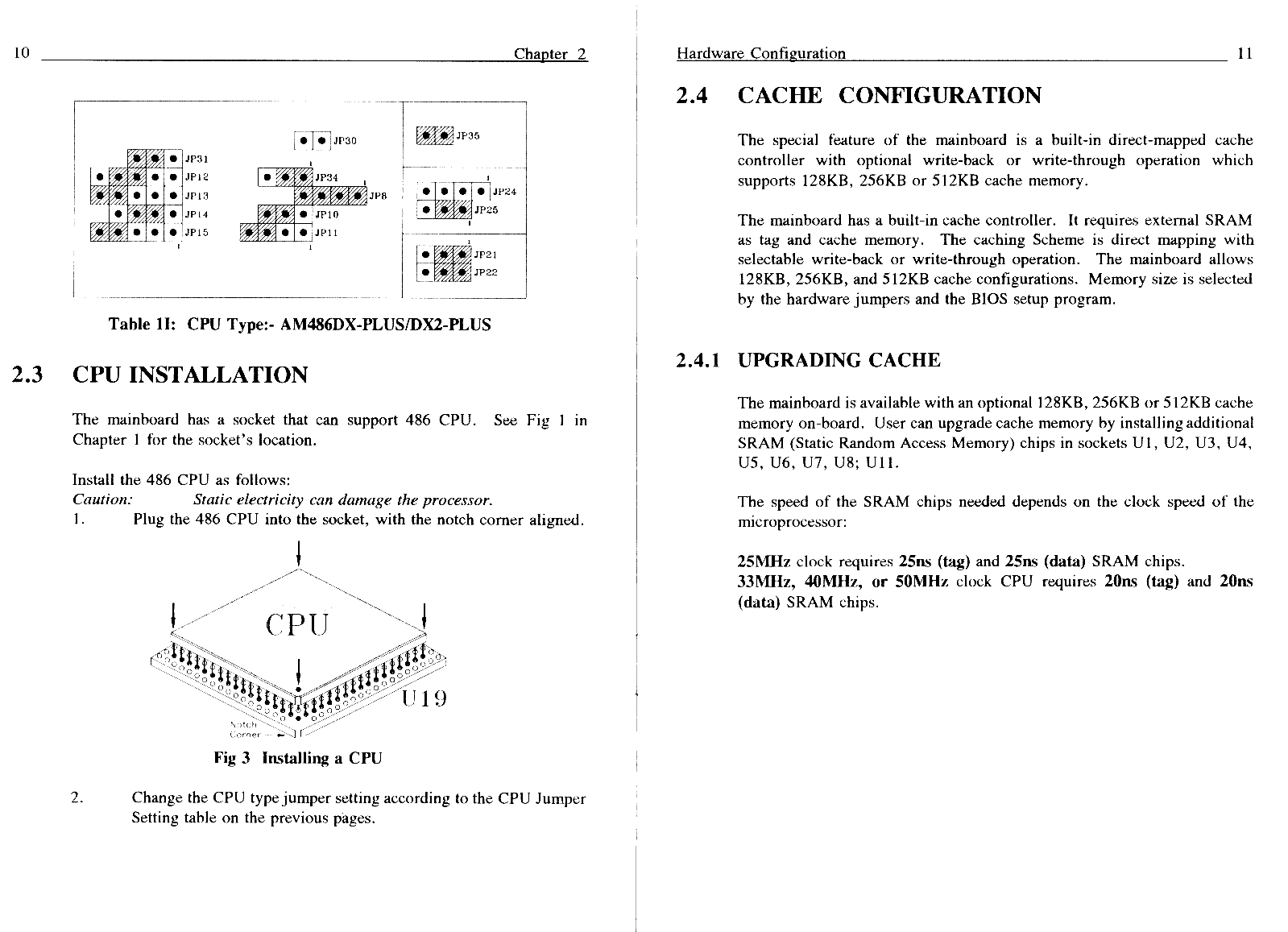

- pages 10 and 11
- pages 12 and 13:
The jumpers mentioned in Fig 4 on page 12 read from top to down:
JP1, JP2, JP33, JP4 and JP3.

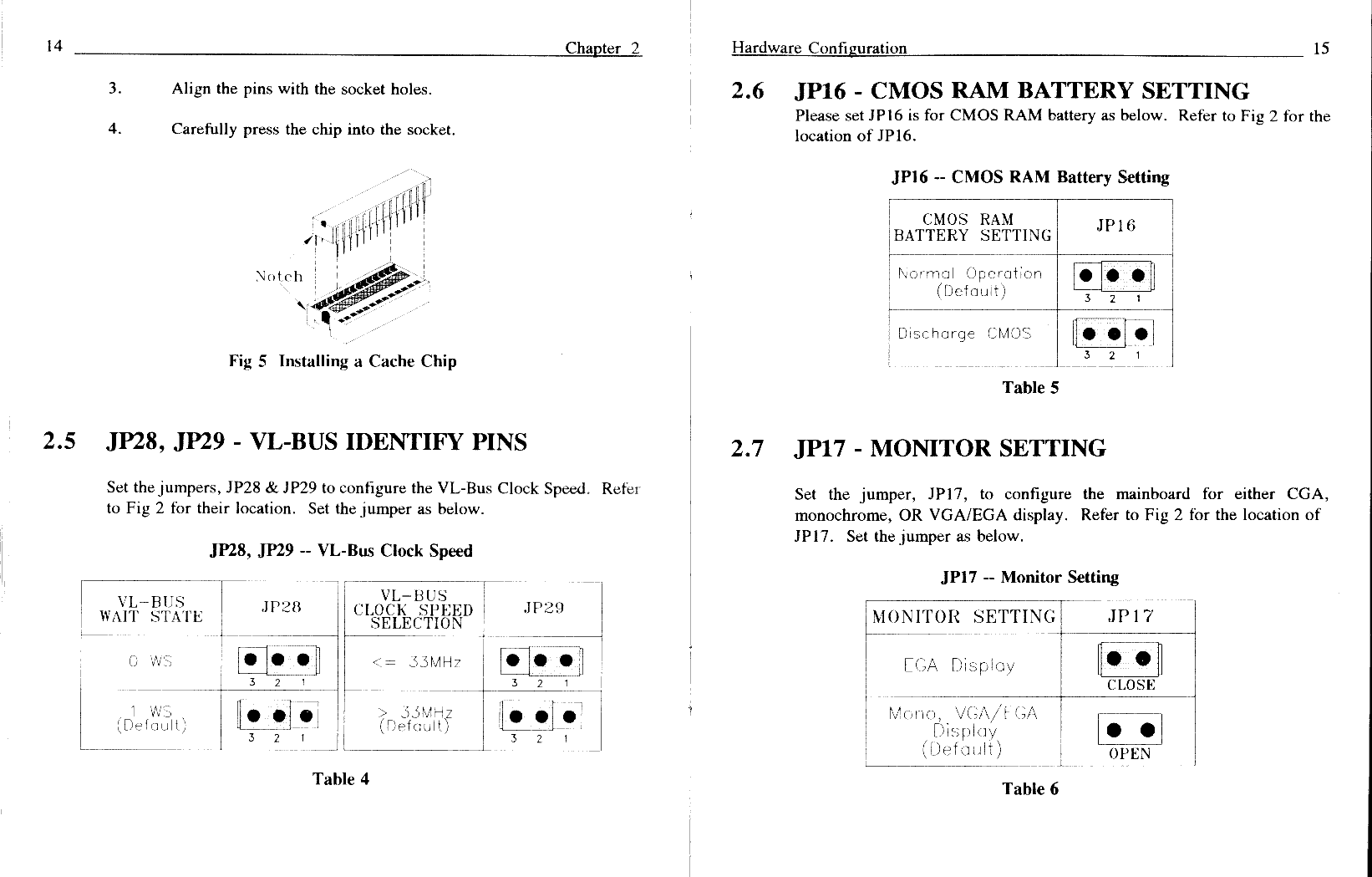

- pages 14 and 15

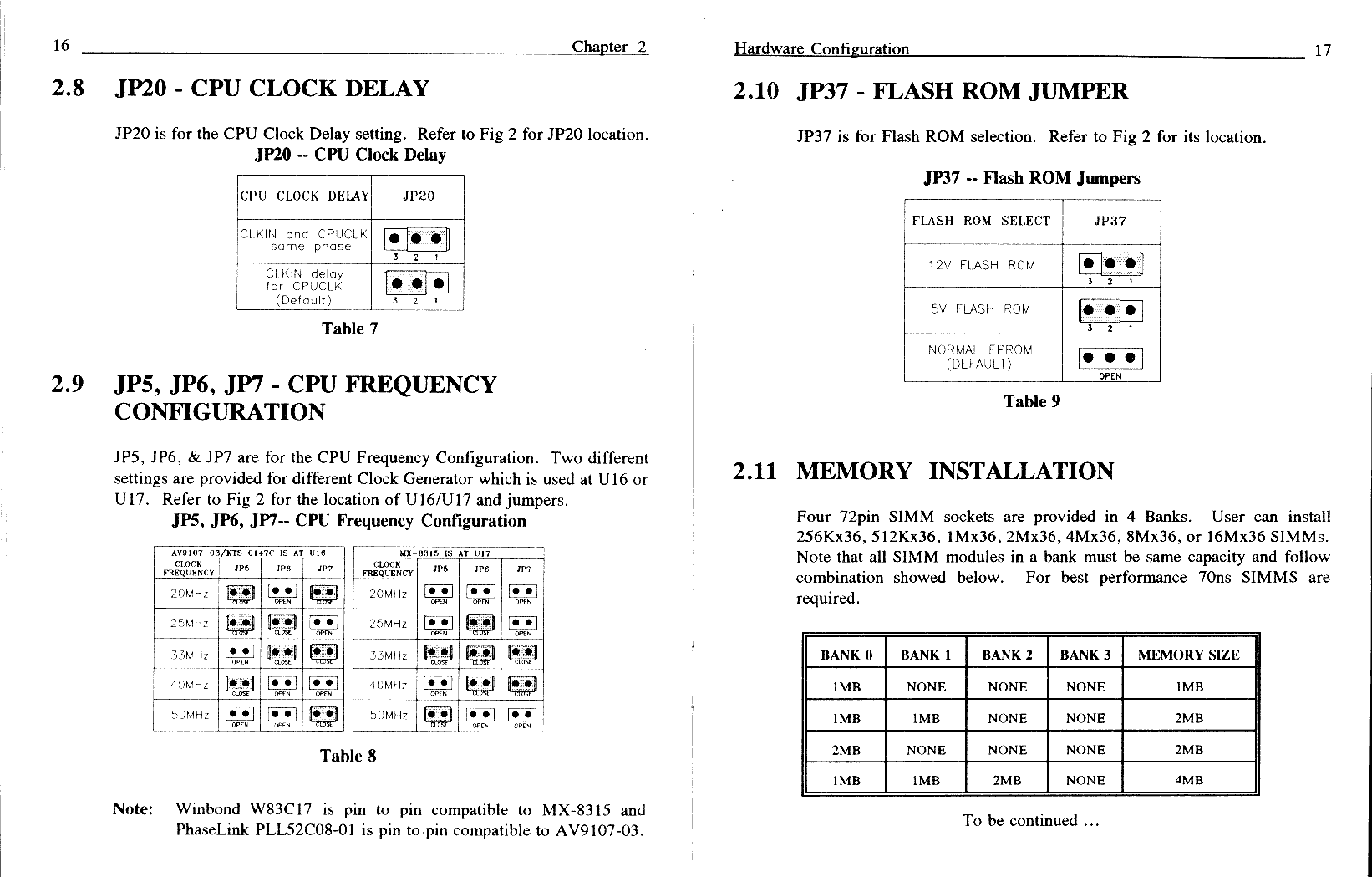

- pages 16 and 17

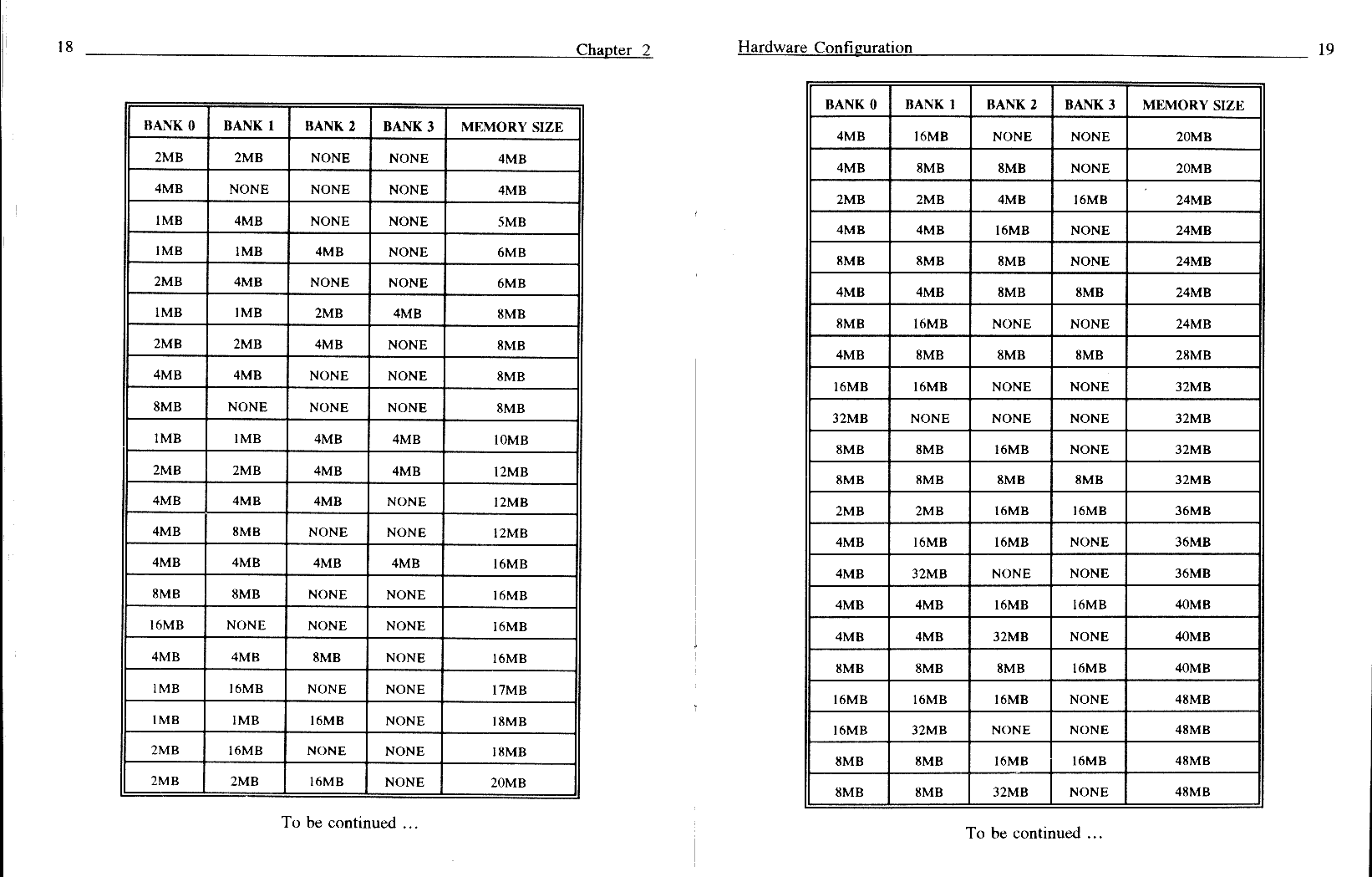

- pages 18 and 19

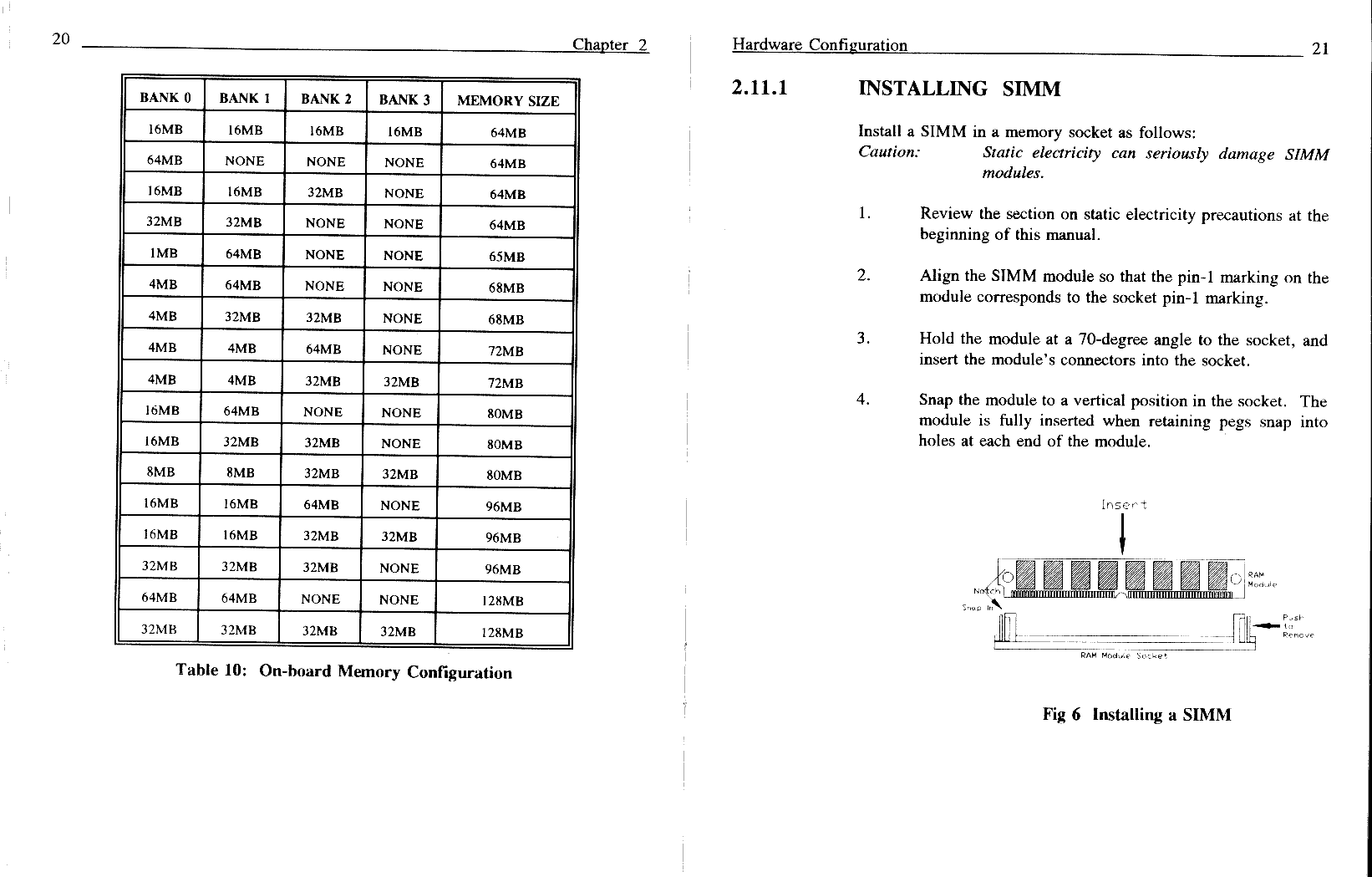

- pages 20 and 21

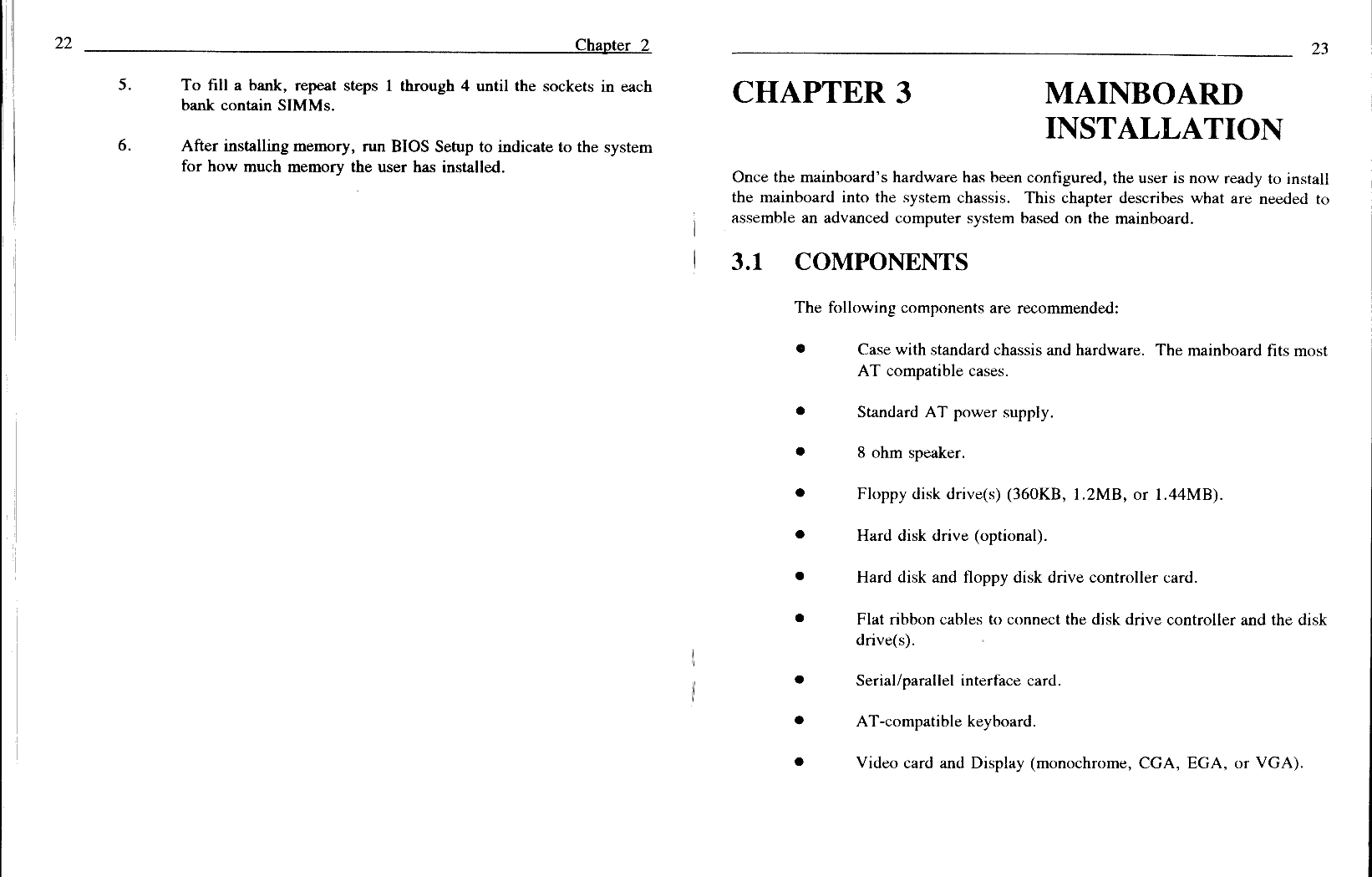

- pages 22 and 23

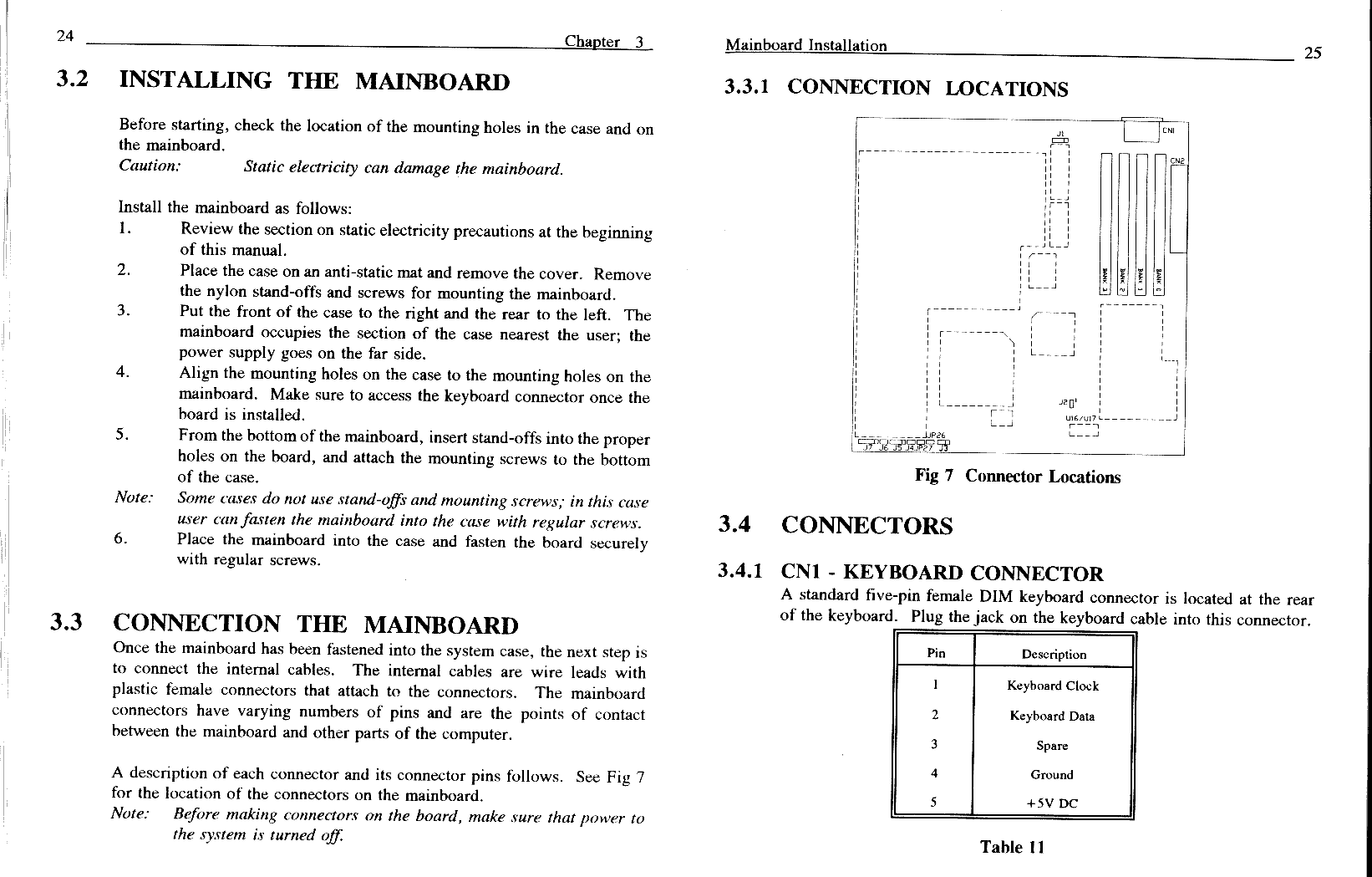

- pages 24 and 25:
The connection locations and jumpers
printed at the bottom of Fig 7 on page 25 read from left to right:
J7, J6, J5, J4, JP27, JP26, J3. Note that JP26 is written above the jumper,
all the others are written below the connection locations and jumpers.

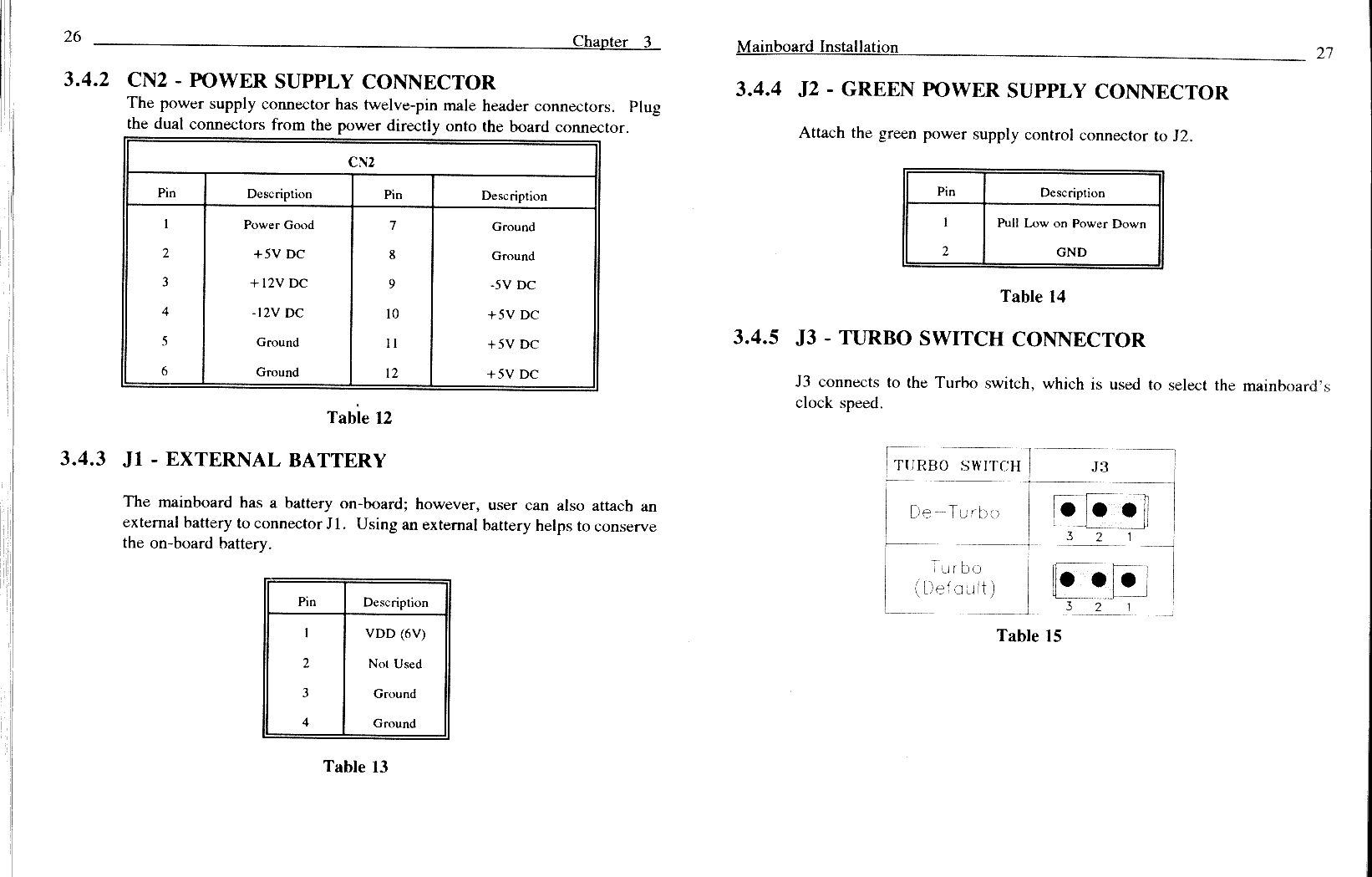

- pages 26 and 27

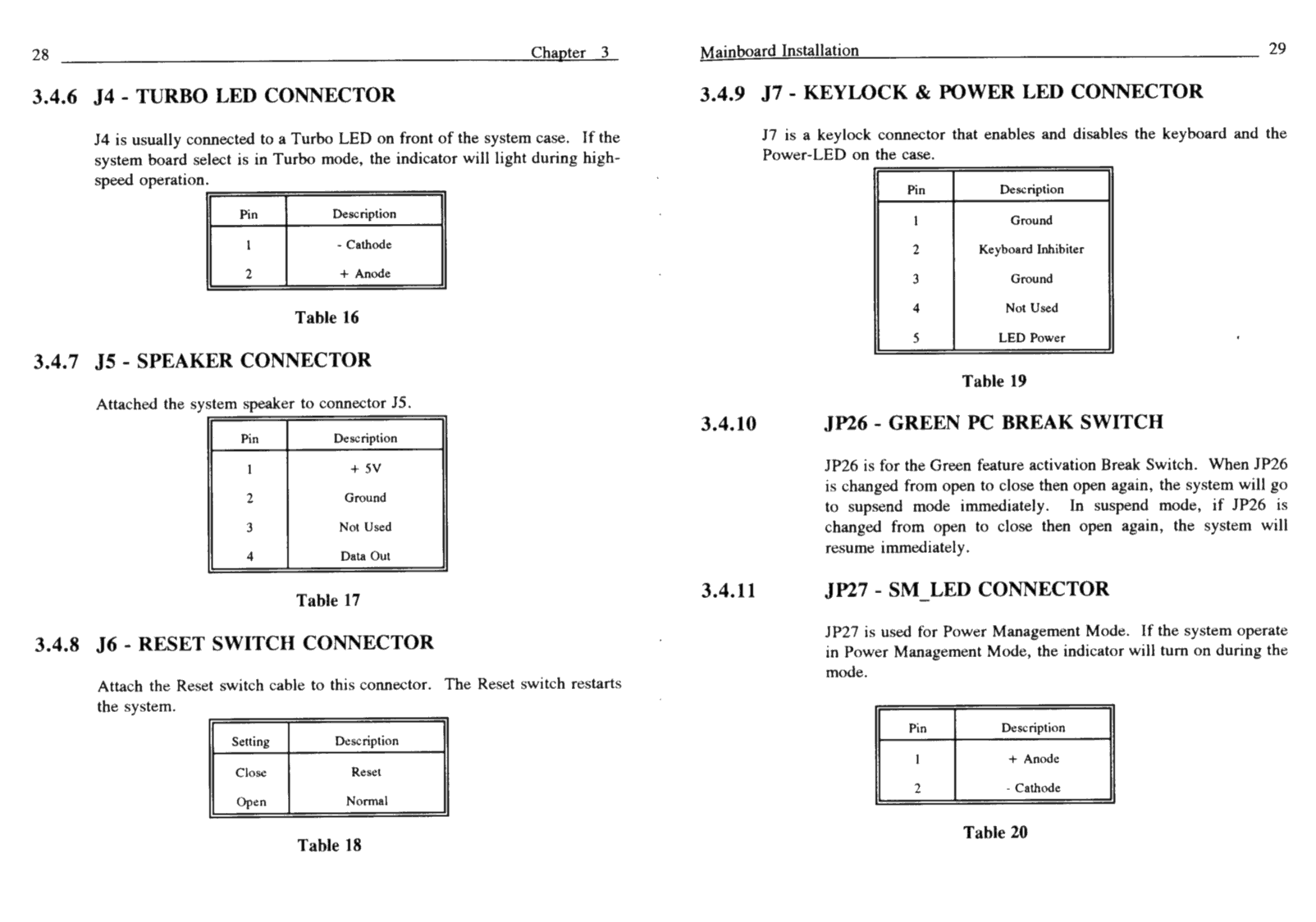

- pages 28 and 29
